• Designed to resist the effects of shock, vibration and pulsation
• Typical applications include those on pumps, hydraulic and pneumatic systems, compressors, machine tools and many other installations where it is necessary to have a gauge with a non-corrosive movement
• Can be used for pumps, hydraulic and pneumatic systems, compressors, machine tools
• Also for other installations where it is necessary to have a gauge with a non-corrosive movement
• All of the gauges supplied by Dixon are designed for long, reliable service under rugged conditions
• Pack of 10 EA
• Manufacturer part number: GC235
• UPC Code: Unavailable
• ASME

Specifications:

• Accuracy = ±3-2-3%
• Body Material = ABS
• Case Material = ABS
• Color = Black
• Connection Size [Nom] = 1/4 in NPT(M)
• Connector Type = NPT
• Dia. [Nom] = 2 in

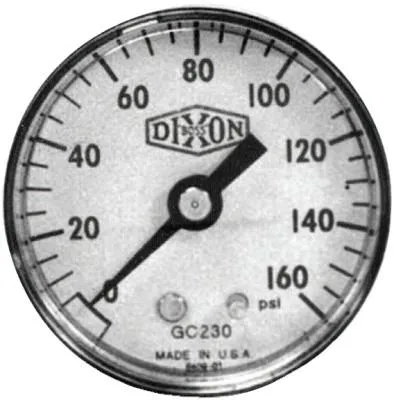

• Display Type = Dial
• Gauge Size = 2 in
• Lens Material = Polycarbonate
• Measuring System = Imperial
• Mounting = Center Back
• Operating Pressure [Max] = 200 psi
• Operating Temp. [Max] = 150 °F
• Operating Temp. [Min] = -40 °F
• Range 1 = 0 to 200 psi
• Thread Size [Nom] = 1/4 in
• Type = Pressure
• Used With = Compressors; Hydraulic and Pneumatic Systems; Machine Tools; Pumps
• Wt. = 0.2 lb
• This is a normal stocking item.
