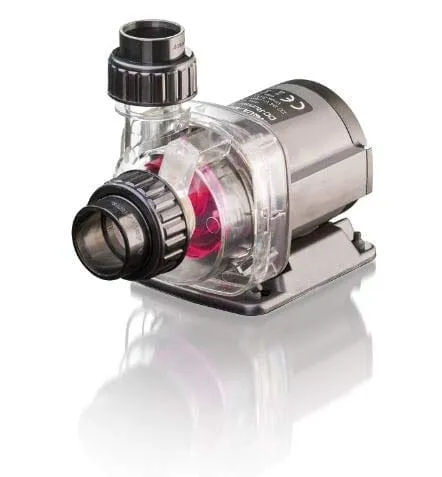

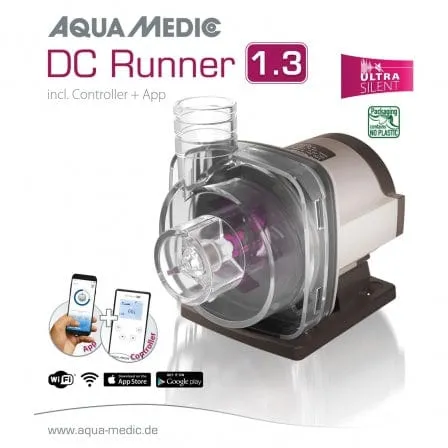

Aqua Medic DC Runner 1.3 WiFi booster pumps
Powerful, adjustable universal pumps with App control for aquariums
"ULTRA SILENT" due to optimized control electronics
Aqua Medic DC Runner X.3 specifications
-
For use as a circulation or flow pump in salt or fresh water aquariums
-
Operation and programming via App (iTunes and Google Playstore) or manually via
the controller
-
incl. controller
-
Simultaneous control of several pumps possible
-
24-hour execution can be programmed
-
0 - 10 V connection for external control options
-
Robust pump housing
-
Energy-saving D / C motor 24 V, high efficiency
-
Polished ceramic shaft and bearings for quiet operation and low maintenance
for many years
-
Submerged and non-submerged use is possible
Aqua Medic DC Runner 1.3 to 3.3 versions
| Type | DC Runner 1.3 | DC Runner 2.3 | DC Runner 3.3 |
| Pump power supply (V) | 24 V | ||
| Power transformer | 100 - 240 V / 50 - 60 Hz | ||
| Pump power (l / h) | Up to 1,200 | Up to 2,000 | Up to 3,000 |
| Max. delivery head (m) | Up to 1.5 | Up to 2.2 | Up to 2.7 |
| Power consumption (w) | max. 12 w | max. 20 w | max. 25 w |
| Suction side connection | 25 mm / 1 inch | 25 mm / 1 inch | 32 mm / 1¼ inch |
| Discharge side connection | 20 mm / 0.8 inch | 25 mm / 1 inch | 25 mm / 1 inch |
| Dimensions in mm About. lxwxh (incl. waste basket) | 125 x 60 x 85 | 140 x 68 x 100 | 195 x 90 x 115 |
| Dimensions in mm About. lxwxh (without waste basket) | 90 x 60 x 85 | 105 x 68 x 100 | 145 x 90 x 115 |
Aqua Medic DC Runner 5.3 to 9.3 versions
| Type | DC Runner 5.3 | DC Runner 9.3 |
| Pump power supply (V) | 24 V | |
| Power transformer | 100 - 240 V / 50 - 60 Hz | |
| Pump power (l / h) | Up to 5,000 | Up to 9,000 |
| Max. delivery head (m) | Up to 3.5 | Up to 4.8 |
| Power consumption (w) | max. 50 W. | max. 65 W. |
| Suction side connection | 32 mm / 1¼ inch | 40 mm / 1½ inch |
| Discharge side connection | 32 mm / 1¼ inch | 40 mm / 1½ inch |
| Dimensions in mm About. lxwxh (incl. waste basket) | 190 x 95 x 125 | - |
| Dimensions in mm About. lxwxh (without waste basket) | 170 x 95 x 125 | 180 x 95 x 135 |
